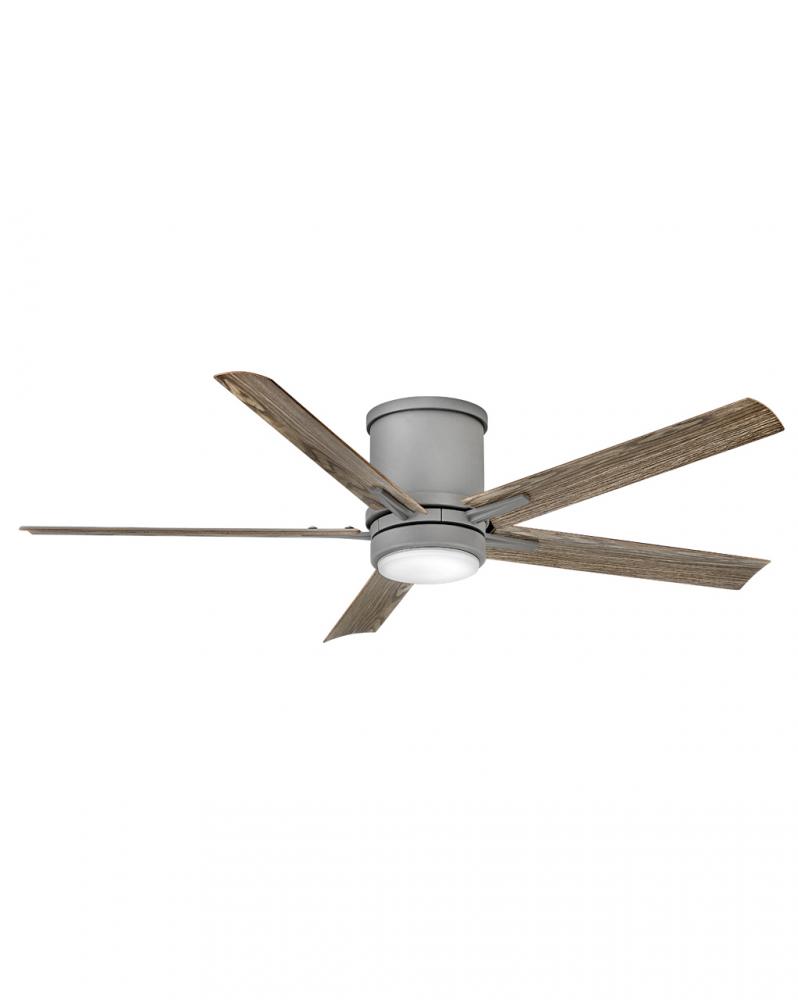

Vail Flush 52" LED Smart Fan (9U3DF)
Vail Flush offers a transitional design with gently curved blades and an array of finish options, while its integrated LED lighting and DC motor technology deliver excellent energy efficiency. Vail Flush is so versatile; it can be used for both indoor and outdoor spaces. Blades are included with every fan.
Product Specification
Item #
9U3DF
Dimensions
Height: 10.50"
Width: 52.00"
Length: 52.00"
Additional product details
Category
Exterior
, Fans
Subcategory
Exterior Fans
, Outdoor Fans
Finish
Gray
, Miscellaneous
Style
Transitional
Option
Title 24
, Wet Rated
, LED
, Prop 65
Voltage
100-120
Lumens
1101-1600
Number of Blades
5 Blades
Kelvin
2501-3000
Location Rating
Wet Rated
Category
Fan
Finish
Graphite
Style
Transitional
Family
Vail Flush
Glass
Etched Opal
Voltage
120 V
Number of Bulbs
1 Bulbs
Air Flow Efficiency
6280
Amperage
0.48
Blade Finish
Driftwood
Blade Pitch
14
Blade Span
52
Blades Included
Yes
Bulb Dimmable
Yes - CL Type Dimmer (SSL7A)
Bulb Hours
50000
Bulb Type
LED
Canopy
7.75 Dia.
Introduction Date
01/01/2022
Kelvin
3000
Light Kit Included
Yes
Lumens / Light Output
1320
Material
Steel
Motor Size
DC-125NS
Motor Type
DC
Ship Carton Height
12
Ship Carton Length
10.5
Ship Carton Width
29.25
Ship Weight
16.75
Vendor Ship Method
Parcel
Weight
14.25
Airflow Avg
4044
AMPS Avg
0.27
Avg Energy Use
26
Blade Material
Composite
Blade Options Available
No
Blade To Ceiling Height
7.5
Blades Reversible
No
Bulb CRI
90
Bulb Included
Yes
Control Type
HIRO Control - 6 Speed Reversing
Country of Origin
China
Dual Mount
No
Efficiency Avg
156
Efficiency High
172
Energy Cost Avg
7
Energy Cost High
10.23
Energy Use High
36.5
Fan Control
Yes
Flush Mount Fan
Yes
Incandescent Equivalency
100 W
Light Kit Adaptable
No
Light Source
Integrated LED
Location Rating
Wet Rated
Max Wattage
16 W
Motor Fan Speed
6
Number of Blades
5
Operating Frequency
60
Prop 65 Description
CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Receiver Included
Yes
Reversing Control
Yes
RPMS Avg
103
RPMS High
162
Safety Rating
UL Approved, C-US Approved
Single Power Switch
Yes
Sloped Ceiling Adaptable
No
Stand By Power
0.2
Title 24
No
WIFI Control Included
Yes
WIFI Control Optional
No
Other Details:
- Blades, controls, switches, capacitors and hardware carry a 1-year warranty
- Fan Control included, HIRO Control - 6 Speed Reversing
- Fans should be installed at a minimum of 7 feet from the floor
- For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.
- LED components carry a 5-year limited warranty
- Merging the best of traditional and modern elements with a sophisticated and streamlined look
- Motor carries a lifetime warranty
- Powered by a highly efficient and quiet DC motor
- Suitable for use in wet (outdoor direct rain) locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards
- WiFi compatible with included fan control
