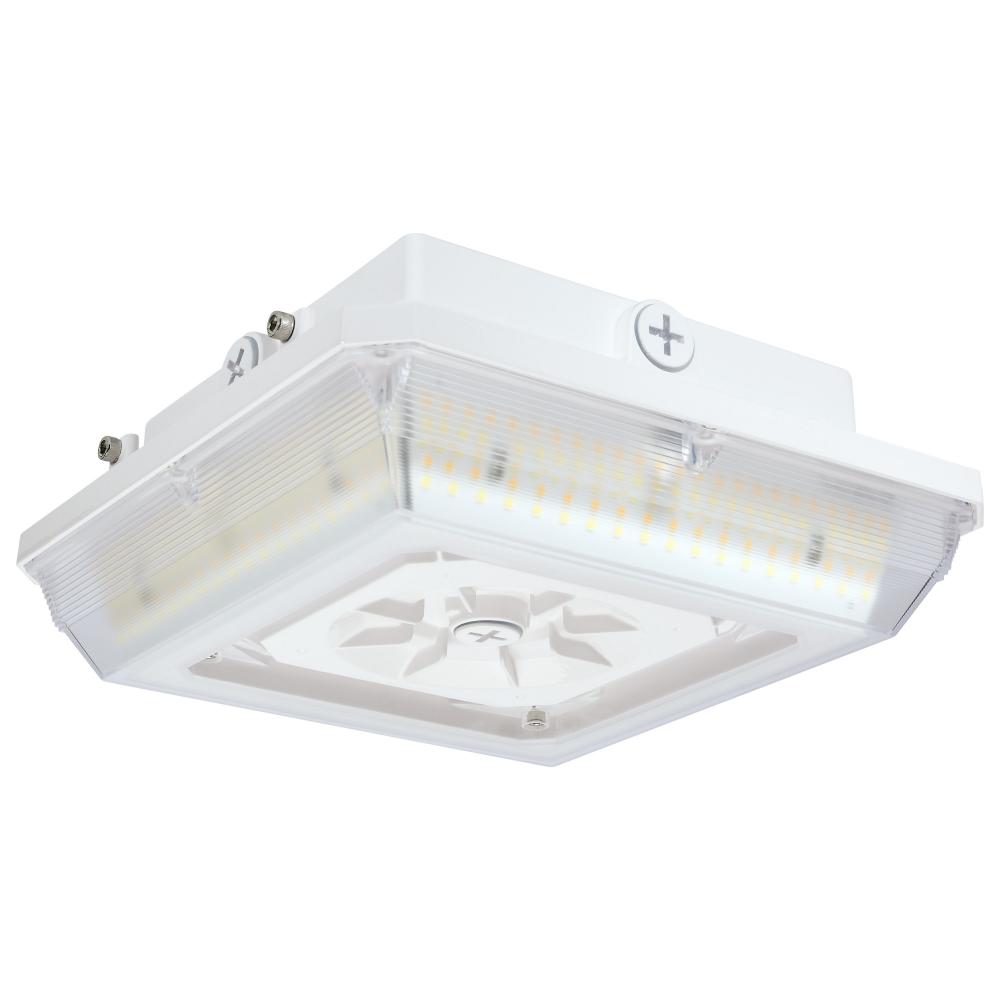

Square LED; Wide Beam Angle Canopy Light; 3K/4K/5K CCT Selectable; 60W/75W/90W Wattage Selectable; (A6E9R)
Square LED; Wide Beam Angle Canopy Light; 3K/4K/5K CCT Selectable; 60W/75W/90W Wattage Selectable; White Finish
Product Specification
Item #
A6E9R
Dimensions
Height: 3.62"
Width: 9.57"
Additional product details
Category
Flush Mounts
Subcategory
Other Flush Mounts
Option
LED
, Prop 65
Lumens
3300+
Kelvin
4001-4500
Category
Surface Mount
Sub Category
Canopy Fixture
Style
Utility
Additional Info
Recommended Mounting Height: 15 to 20 Feet
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm White to Natural Light
Dimmable
Yes-Dimmable
Each Height
11.02
Each Length
11.02
Each Width
5.12
Length
9.57
Lumens
7920L-12557L
Tariff Code
9405.11.6020
Warranty
5 Year Limited - Fixtures
Amps
0.500-0.217/0.625-0.271/0.750-0.325A
ANSI Base
Integrated
Beam Angle
190
B_U_G_Rating
B3-U4-G5
CA Prop-65
Lead
CCT Selectable
Yes
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Connection
Hardwire
Country Of Origin
Vietnam
CRI
80
Dimmable Function
0-10V Dimming
DLC Classification
Premium
DLC Primary Use
Parking Garage Luminaires
Each Cube
0.3598
Each Quantity
1
Efficacy
132.00/136.53/139.52 LPW
FCC Compliant
Yes
Feature 1
Wide Beam Angle for Broad Light Coverage
Feature 10
L:9.57 inches W:9.57 inches H:3.62 inches
Feature 2
3 CCT Selectable
Feature 3
3 Wattage Selectable
Feature 4
Integrated Sensor Port
Feature 5
IK10 Vandal Resistant Lens
Feature 6
EM Battery Backup Capable
Feature 7
0-10V Dimmable
Feature 8
2.5kV Built-in Surge Protection
Feature 9
White Finish
Finish Family
White
Impact Rating (IK)
IK10
Incandescent Equivalent
300W
Indoor Outdoor
Outdoor
Installation Notes
Hinged door for ease of installation
Integrated Features
Integrated DC Sensor Port
IOT Enabled
No
IP Rating
IP65
JA8 Compliant
No
Lens Material
Polycarbonate (PC)
Long Description
SATCO|NUVO's 65-635 LED Wide Beam Angle Canopy, offers cutting-edge field-selectable capabilities. Tailor your lighting experience by selecting from three color temperatures (3K, 4K, 5K) and three wattage options (60W, 75W, 90W.) The canopy comes in a
Material
Die-Cast Aluminum
Mounting Procedure
Ceiling
Operating Frequency
50/60Hz
Operating Temp
-40C (-40F) to +50C (+122F)
Pack Type
Brown Box
Photocell
Optional Add-On
Power Factor
>0.9
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
Experience the versatility of SATCO|NUVO's LED Wide Beam Angle Canopy, equipped with cutting-edge field-selectable capabilities. Choose from three color temperatures and three wattage options. Additionally, the integrated sensor port makes the installa
Safety Listing
cULus - Certified
SDS class
LED_Fixture
Short Description
LED WIDE BEAM ANGLE CANOPY
Specification Notes
Multiple half-inch knockouts; Three quarter inch back knockout for pendant applications
Temperature (CCT)
3000K/4000K/5000K
Title 20 Compliant
No
Total Harmonic Distortion
<20%
Wattage Selectable
Yes
Weight Lb.
4.47
