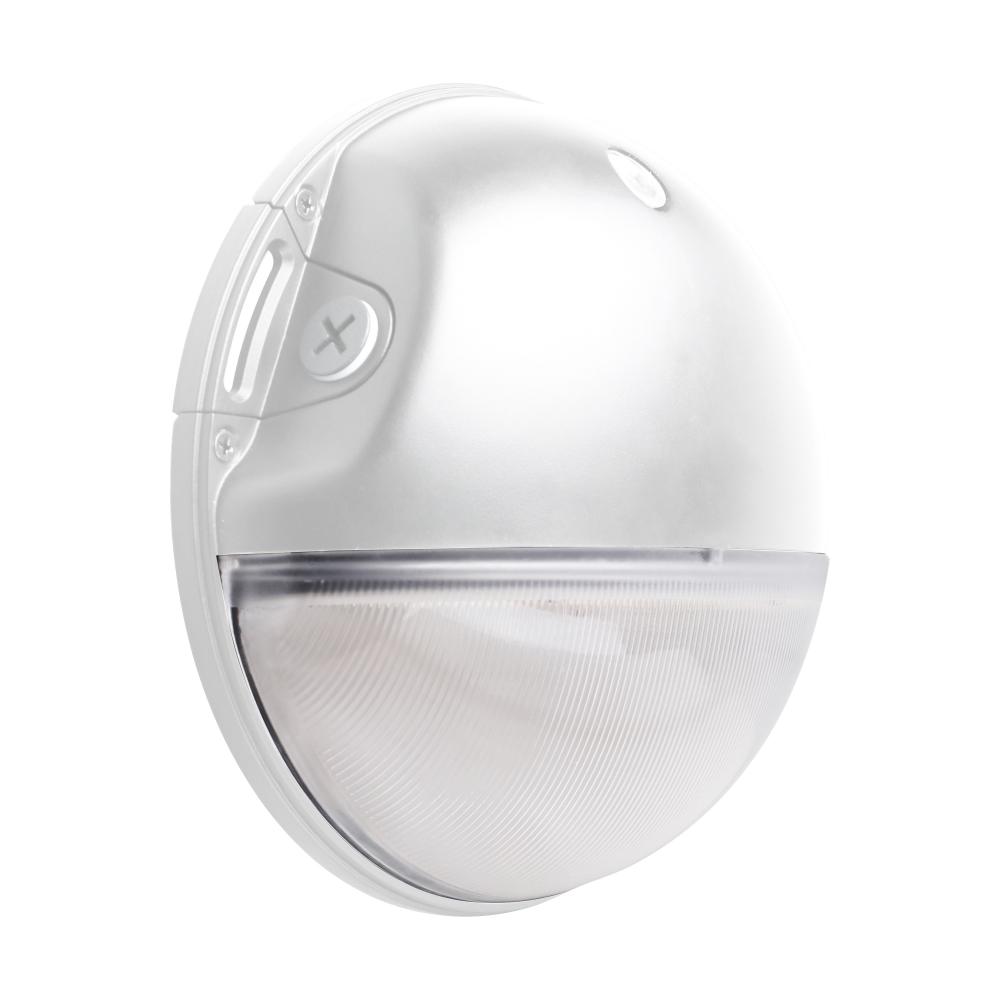

LED Small Round Wall Pack; 20W; CCT Selectable; Bypassable Photocell; 120-277 Volt; White Finish (A39QA)
LED Small Round Wall Pack; 20W; CCT Selectable; Bypassable Photocell; 120-277 Volt; White Finish
Product Specification
Item #
A39QA
Dimensions
Height: 8.70"
Width: 8.70"
Additional product details
Category
Exterior
, Sconces
Subcategory
Wall Lights
, Outdoor Wall Lights
Finish
White
Style
Contemporary
, Traditional
, Modern
Option
LED
, Prop 65
Lumens
1601-2600
Kelvin
4001-4500
Category
Wall Pack
Sub Category
Mini
Style
Modern and Contemporary
Additional Info
UV stabilized powder coated finish
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm to Cool White
Diameter
8.699999999999999
Dimmable
Yes-Dimmable
Each Height
3.62
Each Length
8.94
Each Width
8.94
Lumens
2600L-2800L
Tariff Code
9405.42.6000
Warranty
5 Year Limited - Fixtures
Air Tight
Yes
Amps
0.167-0.072A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
100
B_U_G_Rating
B1-U3-G2
CA Prop-65
Lead
CCT Selectable
Yes
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Closet Rated
No
Connection
Direct Wired
Country Of Origin
Vietnam
CRI
80
Dimmable Down To
100 to 20 percent
Dimmable Function
0-10V Dimming Only
DLC Classification
Premium
DLC Primary Use
Outdoor Non-Cutoff and Semi-Cutoff Wall-Mounted Area Luminaires
Each Cube
0.1674
Each Quantity
1
Efficacy
130.00/135.00/140.00 LPW
FCC Compliant
Yes
Feature 1
DLC Premium
Feature 2
Integrated Bypassable Photocell
Feature 3
CCT Selectable
Feature 4
UV stabilized powder coated finish
Feature 5
IP65 Rated
Feature 6
2.5KV Surge Protection
Feature 7
0-10V Dimmable
Finish Family
White
Fixture shape
Round
Flicker Free
Yes
Has Driver
Yes
Has Emergency Battery
No
HID Equiv
100W
Incandescent Equivalent
150W
Indoor Outdoor
Outdoor
IOT Enabled
No
IP Rating
IP65
JA8 Compliant
No
Long Description
SATCO|NUVO's 65-752 CCT-selectable compact wall pack is the latest expansion in the popular line of Satco's commercial luminaires. This 20-watt white wall pack is just under nine inches in diameter, with superior light output and a convenient, easy
Material
Die-Cast Aluminum
Mounting Procedure
Wall
Operating Frequency
50/60Hz
Operating Temp
-30C (-22F) to +45C (+113F)
Pack Type
Color Box
Photocell
Yes - Bypassable
Power Factor
>0.9
Quantity In Pack
1
R9 Value
3
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
SATCO|NUVO's CCT-selectable compact wall pack is the latest expansion in the popular line of Satco's commercial luminaires. This 20-watt white wall pack is just under nine inches in diameter, with superior light output and a convenient, easy to use
Safety Listing
cULus - Listed
SDS class
LED_Fixture
Short Description
LED SMALL 20W ROUND WALL PACK
Temperature (CCT)
3000K/4000K/5000K
Title 20 Compliant
No
Title 24 Compliant
No
Total Harmonic Distortion
15%
Wattage Selectable
No
Weight Lb.
2.42
