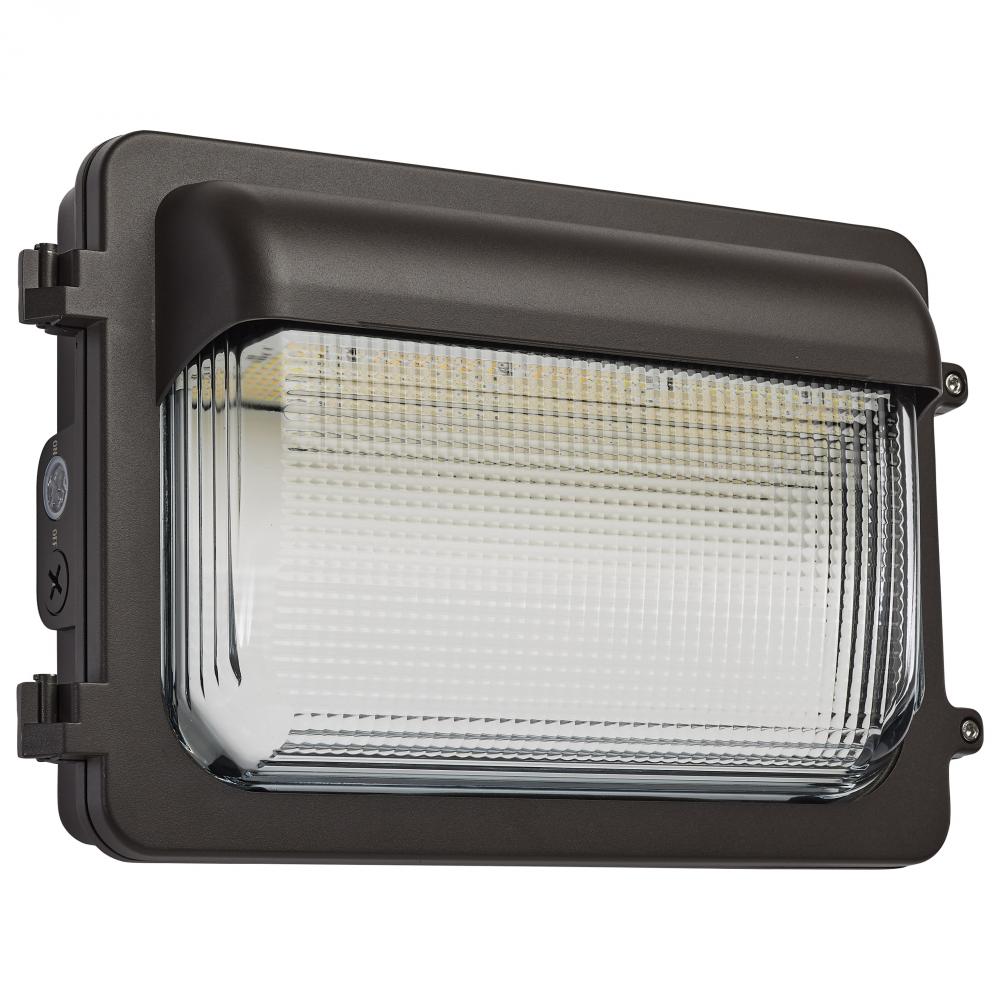

LED Low Profile Wall Pack; Wattage 70/85/100W and CCT 3K/4K/5K Selectable; Photocell; Dimmable; (A9A3V)
LED Low Profile Wall Pack; Wattage 70/85/100W and CCT 3K/4K/5K Selectable; Photocell; Dimmable; Bronze Finish
Product Specification
Item #
A9A3V
Dimensions
Height: 9.76"
Width: 15.55"
Additional product details
Category
Exterior
Subcategory
Wall Lights
Option
LED
, Prop 65
Category
Wall Pack
Sub Category
Standard
Style
Utility
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Soft White to Natural Light
Dimmable
Yes-Dimmable
Each Height
5.25
Each Length
17.5
Each Width
5.25
Lumens
8817L-12941L
Tariff Code
9405.42.6000
Warranty
5 Year Limited - Fixtures
Amps
0.583-0.253/0.708-0.307/0.833-0.361A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
90
B_U_G_Rating
B1-U3-G5
CA Prop-65
Lead
CCT Selectable
Yes
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Connection
Hardwire
Country Of Origin
Thailand
CRI
80
Depth
4.21
Dimmable Down To
100 to 10 percent
Dimmable Function
0-10V Dimming
DLC Classification
Premium
DLC Primary Use
Outdoor Non-Cutoff and Semi-Cutoff Wall-Mounted Area Luminaires
Each Cube
0.2791
Each Quantity
1
Efficacy
125.96/127.99/129.41 LPW
FCC Compliant
Yes
Feature 1
Low Profile Extends less than 4.25 inches
Feature 2
Integrated Bypassable Photocell
Feature 3
IK08 Vandal Resistant Glass Lens
Feature 4
Wet Location
Feature 5
0-10V Dimmable Down to 10 percent
Feature 6
IP65 Rated
Feature 7
DLC Premium
Feature 8
Bronze Finish
Finish Family
Bronze
Fixture shape
Trapezoid
Has Driver
Yes
HID Equiv
175W/265W/350W
Impact Rating (IK)
IK08
Incandescent Equivalent
550W
Indoor Outdoor
Indoor;Outdoor
IOT Enabled
No
IP Rating
IP65
JA8 Compliant
No
Lens Finish
Clear
Lens Material
Borosilicate Glass
Long Description
SATCO|NUVO's 65-885 LED Low Profile Wall Pack is a versatile fixture that offers field-selectable settings (70-Watt/85-Watt/100-Watt) with 3 CCT options (3000K, 4000K, 5000K), allowing you to tailor the lighting to your needs. Its sleek and durable des
Material
Die-Cast Aluminum
Mounting Procedure
Wall
Operating Frequency
50/60Hz
Operating Temp
-40C (-40F) to +50C (+122F)
Pack Type
Kraft Box
Photocell
Has Photocell
Power Factor
>0.9
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
SATCO|NUVO's LED Low Profile Wall Pack is a versatile fixture that offers field-selectable settings, allowing you to tailor the lighting to your needs. Its sleek and durable design, featuring an IK08 vandal resistant glass lens and integrated bypassabl
Safety Listing
cETLus - Listed
Short Description
LED LOW PROFILE WALL PACK
Temperature (CCT)
3000K/4000K/5000K
Title 20 Compliant
No
Total Harmonic Distortion
<20%
Wattage Selectable
Yes
Weight Lb.
9.26
