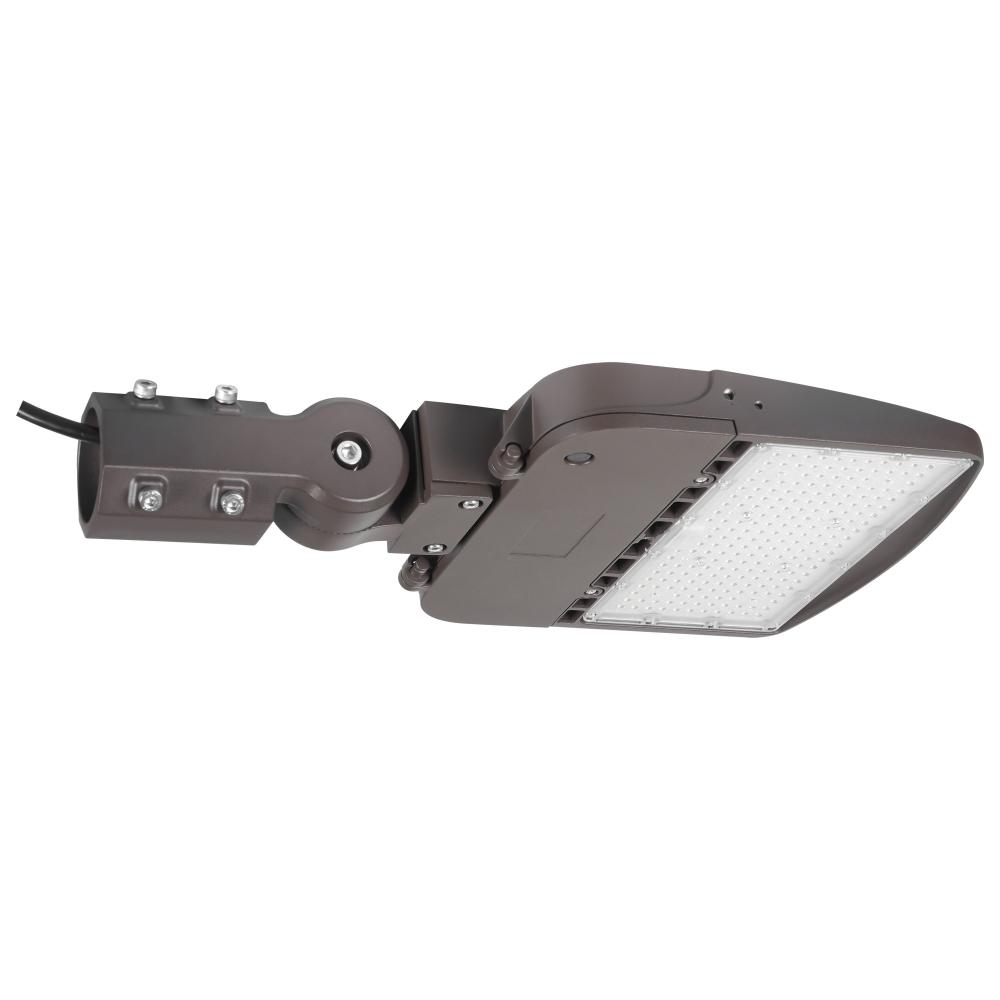

LED Area Light Type III; 150W; Bronze Finish; 4000K; 120-277V (A3ANG)
LED Area Light Type III; 150W; Bronze Finish; 4000K; 120-277V
Product Specification
Item #
A3ANG
Dimensions
Height: 3.11"
Width: 12.40"
Additional product details
Category
Landscape Ltg.
Subcategory
Path Lights
Finish
Bronze
Option
LED
, Prop 65
Lumens
3300+
Kelvin
4001-4500
Category
Outdoor
Sub Category
Area Light
Style
Utility
Additional Info
Powder Coated
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Cool White
Dimmable
Yes-Dimmable
Each Height
5.71
Each Length
23.23
Each Width
14.37
Length
20.71
Lumens
19507L
Tariff Code
9405.42.6000
Warranty
5 Year Limited - Fixtures
Amps
1.500-0.542A
ANSI Base
Integrated
BAA Compliant
No
B_U_G_Rating
B3-U2-G3
CA Prop-65
Lead
CCT Selectable
No
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Connection
Hardwire
Country Of Origin
Vietnam
CRI
80
Dark Sky Rated
No
Dimmable Down To
100 to 20 percent
Dimmable Function
0-10V Dimming
DLC Classification
Premium
DLC Primary Use
Outdoor Pole/Arm-Mounted Area and Roadway Luminaires
Each Cube
1.1031
Each Quantity
1
Efficacy
130.05 LPW
FCC Compliant
Yes
Feature 1
Maintenance free - no bulb to change
Feature 2
Die-cast Aluminum Body
Feature 3
UV Stabilized powder coasted bronze finish
Feature 4
Slip-fitter mount included
Feature 5
IP65 Rated
Feature 6
Multiple mounting options available
Feature 7
Add-on sensors available
Finish Family
Bronze
HID Equiv
320W
Impact Rating (IK)
IK10
Incandescent Equivalent
450W
Includes
2-3/8 inch Slip-fitter Mount
Indoor Outdoor
Indoor;Outdoor
IOT Enabled
No
IP Rating
IP65
JA8 Compliant
No
Lens Material
Polycarbonate (PC)
Long Description
SATCO|NUVO's 65-842 150W LED Area Light Type III provides cool white light, engineered for the highest performance in multiple applications. The lamp's high lumen count provides superior illumination. SATCO|NUVO's LED Area Lights, built using d
Material
Die-Cast Aluminum
Mounting Procedure
Wall/Pipe Arm
Operating Frequency
50/60Hz
Operating Temp
-40C (-40F) to +45C (+113F)
Pack Type
Box
Photocell
Optional
Power Factor
>0.9
Quantity In Pack
1
R9 Value
12
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
SATCO|NUVO's LED Area Light Type III provides cool white light, engineered for the highest performance in multiple applications. The lamp's high lumen count provides superior illumination. SATCO|NUVO's LED Area Lights, built using die cast alum
Safety Listing
cULus - Certified
SDS class
LED_Fixture
Short Description
150W LED AREA LIGHT TYPE III
Specification Notes
Type III Light Distribution
Temperature (CCT)
4000K
Title 20 Compliant
No
Title 24 Compliant
No
Total Harmonic Distortion
15%
Wattage Selectable
No
Weight Lb.
8.08
