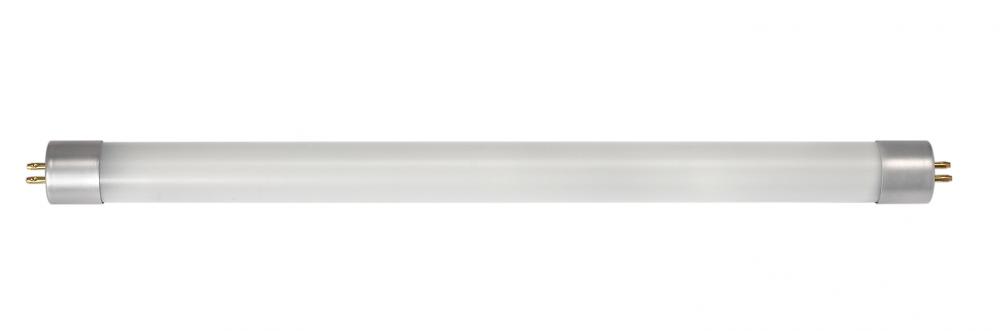

4 Watt T5 LED; Miniature bi-pin base; 6500K; 50000 Average rated hours; 400 Lumens; 120-277 Volt;
Image may not reflect selected features
/vendors/27/large/S11906.jpg
additional image
additional image
additional image
4 Watt T5 LED; Miniature bi-pin base; 6500K; 50000 Average rated hours; 400 Lumens; 120-277 Volt; (LNK19)
4 Watt T5 LED; Miniature bi-pin base; 6500K; 50000 Average rated hours; 400 Lumens; 120-277 Volt; Type B; Ballast Bypass; Double Ended Wiring
Product Specification
Item #
LNK19
Dimensions
Width: 0.83"
Additional product details
Category
Light Bulbs
Subcategory
LED Bulbs
Finish
White
Style
Traditional
Lumens
450-800
Kelvin
6001-6500
Category
LED
Sub-Category
LED T5
Volts
120V-277V
Bulb Dimmable
Non-Dimmable
Bulb Hours
50000
Bulb Kelvin
6500K
Bulb Shape
T5
Diameter
0.83
EA Length
12
Harmonized Codes
8539.52.0051
Length
11.91
Lumens
400L
Shap Carton Width
0.9
Ship Carton Height
0.9
Ship Weight
0.08
Warranty
5 Year Limited - T5 LED Bulbs - Ballast Bypass
Weight
0.08
Additional Info
Replaces F8T5/D lamps
BAA Compliant
No
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
No ballast or external driver required
Beam Spread
240
Bulb ANSI Base
G5
Bulb Base
Miniature Bi Pin
Bulb Finish
Frost
Burning Position
Universal
Carton Cubic Feet
0.0056
Cartons Per Unit
1
CCT Selectable
No
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Daylight
Country Of Origin
China
CRI
82
DLC Approved
No
DLC ID
No
Efficacy
100.00 LPW
Enclosed Fixture Use
Yes
Enclosure Rating
Enclosed Rated Lamp
FCC Compliant
Yes
Feature 1
MOL: 11.91 inches, MOD: 0.83 inches
Feature 2
Superior 82 CRI light quality, 400 lumens, 6500K daylight, with a 240 degree beam spread
Feature 3
Rated for enclosed fixtures
Feature 4
Damp location rated
Feature 5
8 watt fluorescent equivalent
Feature 6
Frost finished linear bulb
Feature 7
LED energy efficient fixture
Feature 8
5 Year Limited Warranty
Flourescent Equivalent
8W
Incandescent Equivalent
25W
Installation Notes
Not for use in vapor tight fixtures. Direct wire 120-277V line voltage; Double ended wiring
Lamp Ballast Type A/B/C
Type B
Lamp End Type
Double Ended
Lamp Filament
LED
Lens
Yes
Lens Finish
Frost
Location Rating
Damp
Long Description
Satco's S11906 4 watt T5 LED Type B miniature bi-pin replaces traditional linear lamps with a no ballast, no external driver option for lasting retrofit conversion. With double ended wiring for convenience, the frosted bulb has a temperature of 6500 ke
Material
Glass
Nominal Length
12
NSF Approved
Yes
Operating Frequency
50/60Hz
Operating Temp
-25C (-13F) to +45C (+113F)
Pack Type
Box
Power Factor
0.9
Quantity In Pack
1
RoHS Compliant
Yes
Romance Copy
Satco's 4 watt T5 LED Type B miniature bi-pin replaces traditional linear lamps with a no ballast, no external driver option for lasting retrofit conversion. With double ended wiring for convenience, the frosted bulb has a temperature of 6500 kelvins a
SDS class
LED_Lamp
Shatter Proof Text
PET Coated
Short Description
4W/LED/T5/865/BP
Style
Utility
Surge Protection
Built-in-surge protection - 0.5KV
Technology
LED
Title 20 Compliant
No
Total Harmonic Distortion
20%
Wattage Selectable
No
Watts
4W
Finish Family
