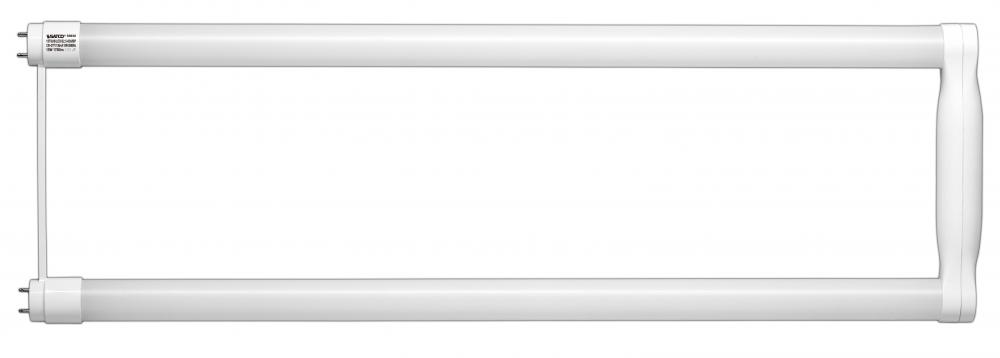

15 Watt T8 U-Bend LED; Medium bi-pin base; 3000K; 50000 Average rated hours; 1800 Lumens; Type B;
Image may not reflect selected features
15 Watt T8 U-Bend LED; Medium bi-pin base; 3000K; 50000 Average rated hours; 1800 Lumens; Type B; (WQFFV)
15 Watt T8 U-Bend LED; Medium bi-pin base; 3000K; 50000 Average rated hours; 1800 Lumens; Type B; Ballast Bypass; Single Ended Wiring
Product Specification
Item #
WQFFV
Dimensions
Width: 1.00"
Additional product details
Category
Light Bulbs
Subcategory
LED Bulbs
Finish
White
Category
LED
Sub-Category
LED T8 U Bend
Volts
120V-277V
Bulb Dimmable
Non-Dimmable
Bulb Hours
50000
Bulb Kelvin
3000K
Bulb Shape
T8
Diameter
1
EA Length
1.4
Harmonized Codes
8539.52.0051
Length
22.5
Lumens
1800L
Shap Carton Width
7.5
Ship Carton Height
23.2
Ship Weight
0.75
Warranty
5 Year Limited - T8 LED Bulbs - Ballast Bypass
BAA Compliant
No
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass
Beam Spread
220
Bulb ANSI Base
G13
Bulb Base
Medium Bi Pin
Bulb Finish
Frost
Burning Position
Universal
Carton Cubic Feet
0.141
Cartons Per Unit
1
CCT Selectable
No
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Warm White
Country Of Origin
China
CRI
82
DLC Approved
No
Efficacy
120.00 LPW
Enclosed Fixture Use
Yes
Enclosure Rating
Enclosed Rated Lamp
FCC Compliant
Yes
Flourescent Equivalent
36W
Incandescent Equivalent
100W
Installation Notes
Not for use in vapor tight fixtures.
Lamp Ballast Type A/B/C
Type B
Lamp End Type
Single Ended
Lamp Filament
LED
Leg Spacing
6
Lens
Yes
Lens Finish
Frost
Location Rating
Damp
Nominal Length
22.5
NSF Approved
Yes
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +45C (+113F)
Pack Type
Box
Power Factor
0.9
Quantity In Pack
1
RoHS Compliant
Yes
SDS class
LED_Lamp
Short Description
15T8U6/LED/22.5-830/BP
Technology
LED
Title 20 Compliant
No
Wattage Selectable
No
Watts
15W
Finish Family
Additional options that would change other selections
